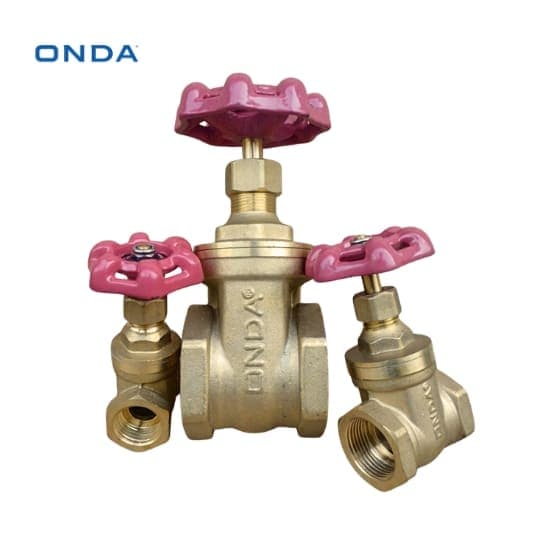

Gate Valve Kuningan ONDA
| Product Name | Onda Brass Gate Valve |
| Material | Brass |
| Standard | JIS |
| Copper Content | SNI Cu 57–63% |
| Working Temperature | -20°C to 120°C |
| Media | Water, Oil, Gas |
| Valve Type | Gate type, up-down mechanism |
| Size | A | B | C | D | E | H |
|---|---|---|---|---|---|---|
| 1/2" | 40.5 | 11.2 | 13.5 | 52 | 27.5 | 76 |
| 3/4" | 47.5 | 13.5 | 19 | 56 | 33.5 | 86 |
| 1" | 53 | 14 | 25 | 62 | 40 | 98 |
| 1-1/4" | 60 | 16 | 30 | 69 | 49 | 115 |
| 1-1/2" | 62.5 | 16.5 | 37 | 78 | 56 | 132 |
| 2" | 73 | 18 | 48 | 85 | 68 | 148 |
| 2-1/2" | 84 | 21 | 55 | 173 | 85.5 | 175 |
| 3" | 93 | 22 | 65 | 113 | 99 | 195 |
| 4" | 107 | 26 | 78 | 145 | 123 | 225 |
Ready Stock
Deskripsi Produk:
Gate Valve Kuningan Onda adalah katup manual untuk mengatur aliran air, minyak, dan gas. Gate Valve ini memakai material brass/Kuningan dan mengikuti standar JIS. Kandungan kuningannya tinggi, sesuai standar SNI Cu yaitu 57-63% dan punya ketahanan suhu kerja dari -20°C sampai 120°C
